Shineway Tech

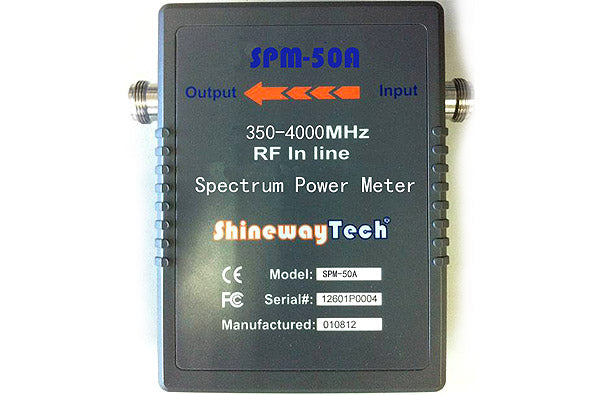

In-Line Spectrum Power Meter (SPM-50A)
In-Line Spectrum Power Meter (SPM-50A)
Regular price
$2,160.00 USD
Regular price
Sale price
$2,160.00 USD
Unit price
/
per
Couldn't load pickup availability
| GENERAL SPECIFICATION | ||
|---|---|---|
| Frequency Range | Average Power Range | Peak Power Range |
| 400 HMz ~ 4000 MHz | 100 mW ~ 200 W or 20 ~ 53 dBm | 100 mW ~ 500 W or 20 ~ 57 dBm |
The SPM-50A Spectrum Power Meter is an innovative testing tool for RF cable system installation and maintenance. It combines the functions of a spectrum analyzer and power meter to accurately measure the power characteristics of a specific signal among mixed signals transmitted on a cable. The results are presented in a power histogram or spectrum chart. The SPM-50A supports various test modes, including normal, burst, and frequency segment sweep, allowing users to gather information on forward power, reflected power, return loss, VSWR, peak power, crest, CCDF, duct cycle, and more.
Features:
Features:
- Combination of power and spectrum analyzer
- Test modes: normal, burst, and frequency segment sweep
- Burst test: Burst average power, burst peak power, duty cycle
- Power histogram or spectrum chart display
- Preset frequency band for fast scanning
- Live testing through feeder cable system
- Compatible with PC software or handheld monitor
- USB communication port
- Reverse protection
- Compact design, weighing only 495g.
