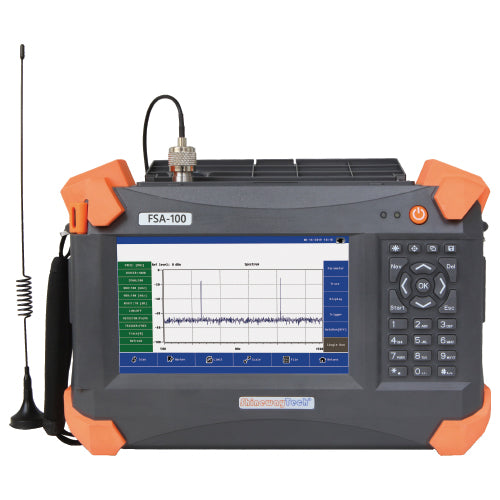

Spectrum Analyzer (FSA-100)
Spectrum Analyzer (FSA-100)
Regular price
$9,869.00 USD
Regular price
Sale price
$9,869.00 USD
Unit price
/
per
GENERAL SPECIFICATION | ||
---|---|---|
Frequency Range | Resolution Bandwidth RBW (-3dB) |
|
9 kHz to 6 GHz | 1 Hz to 3 MHz, 1 - 3 - 10 step |
The FSA-100 series 6GHz spectrum analyzers are commonly utilized in various generations of mobile networks such as 2G, 3G, 4G, and 5G. These analyzers boast exceptional receiver sensitivity, featuring a minimum display average noise level of -165dBm/Hz, setting a high standard in the industry. With a power measurement dynamic range of up to 100dB and a maximum RF input power exceeding 27dBm, the FSA-100 series delivers top-notch performance. Equipped with a large 7" capacitive touch screen with a resolution of 1024*600, users can expect an outstanding user experience. Despite its high-performance capabilities, the FSA-100 series remains compact and lightweight, ensuring portability and ease of use. With a battery life of over 4.5 hours, these analyzers are suitable for a wide range of signal measurements in complex environments. Ideal for the construction, upgrading, and maintenance of next-generation wireless networks, the FSA-100 series is a must-have tool.
- Advanced all-digital IF technology
- Frequency range from 9KHz to 6GHz
- Ultra-low minimum display noise level of -165dBm/Hz
- Power dynamic range up to 100dB and maximum continuous input power of >= 27dBm
- SSB phase noise at -90dBc/Hz @10kHz offset (typical)
- Minimum RBW of 1Hz - RF Attenuator Range from 0 to 55dB in 5dB increments
- Supports various measurements including ACPR, channel power, transmit bandwidth, occupied bandwidth, and C/I measurement
- Enables AM, FM, FFT, IQ demodulation at zero bandwidth
- Features a 7-inch color touch screen LCD with high resolution
- Robust file management capabilities with batch edit/delete/filter functions
- Offers multiple display modes such as normal, black and white, night vision, and highlighting
- Long battery life of more than 4.5 hours for extended usage.
