Shineway Tech

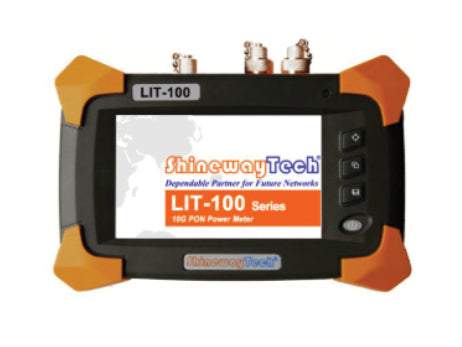

10G PON Power Meter (LIT-100)
10G PON Power Meter (LIT-100)
Regular price
$2,053.35 USD
Regular price
Sale price
$2,053.35 USD
Unit price
/
per
Couldn't load pickup availability
| GENERAL SPECIFICATION | |
|---|---|
| B/E/G PON | 10G/XGS PON |
| 1310 nm: : -40~+10 dBm, 1490 nm: : -40~+12 dBm, 1550 nm: : -40~+25 dBm | 1270 nm: -40~+10 dBm, 1577 nm: : -40~+25 dBm |
The LIT-100 10G PON Power Meter is designed to conduct in-service testing of all PON signals (1270/1310/1490/1550/1577nm) at any point in the network. With its pass-through design, burst mode, and Pass/Fail assessment indication function, this device is invaluable for technicians in qualifying, activating, and troubleshooting B-PON, E-PON, G-PON, and advanced 10G PON networks like XG-PON and 10G-EPON.
Features:
Features:
- Specifically tailored for FTTx/PON (B/E/G/10G) applications
- 5" Touch screen, User-defined thresholds, Pass/Fail assessment indication,
CSV file format - Simple operation: Connect fiber and obtain results
- Simultaneous measurement of Triple-play PON signals: 1270/1310/1490/1550/1577nm (Voice/Data/Video)
- Pass-through testing: Suitable for any location on the PON
- Burst mode for detecting upstream signals at 1270nm/1310nm
- Customizable user-defined thresholds
- Indication of Pass/Warning/Fail assessment
- Editing of Cable/Fiber IDs
- Data export in CSV file format
- Color TFT display, visible even in outdoor settings
