Shineway Tech

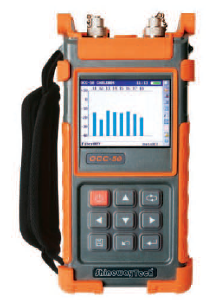

CWDM Optical Channel Checker (OCC-50A)
CWDM Optical Channel Checker (OCC-50A)
Regular price
$6,002.00 USD
Regular price
Sale price
$6,002.00 USD
Unit price
/
per
Couldn't load pickup availability
| GENERAL SPECIFICATION | |||
|---|---|---|---|
| 8-channel Measurement | Power Range | Unit | Power Meter Module |
| 1471 - 1611 nm | -50 ~ +10 dBm | W / mW / uW / nW / pW / dBm / dB (REF) | 850 / 1300 / 1310 / 1490 / 1550 / 1625 nm, -70 ~ +10 dBm (-60 ~ +10 dBm @ 850 nm) |
The OCC-50 Handheld CWDM Optical Channel Checker is specifically crafted for CWDM installation, maintenance, and troubleshooting tasks. It is capable of measuring and monitoring power values across 18 CWDM channels. With the ability to replace high-cost Spectrometers, the OCC-50 offers quick and reliable measurements in any environment. Its lightweight, compact, and durable design make it the perfect tool for CWDM installation and maintenance professionals.
Features:
- Clear TFT LCD display (320x240)
- 18-channel measurement: Model OCC-508, 1271-1611nm
- 8-channel measurement: Model OCC-50A, 1471-1611nm
- Results displayed in histogram and list formats
- Suitable for normal optical power measurement
- Internal clock and editable fiber SIN
- User-definable threshold settings
- Data transfer to PC via USB
- No warm-up required, quick start functionality
- Backlight for enhanced visibility
- 10 hours of continuous operation
- Pocket-sized, lightweight, and user-friendly design
- CE and FCC certificates for quality assurance.
