Shineway Tech

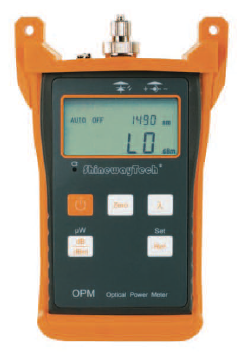

Optical Power Meter (OPM-15B)
Optical Power Meter (OPM-15B)
Regular price
$126.36 USD
Regular price
Sale price
$126.36 USD
Unit price
/
per
Couldn't load pickup availability
| GENERAL SPECIFICATION | ||
|---|---|---|
| Power Meter | Auto-zeroing | Unit |
| 850 / 1300 / 1310 / 1490 / 1550 / 1625 nm, -50 ~ +27 dBm | with SC, FC adapter | W / μW / dBm / dB (REF) |
The OPM-15/25 series Optical Power Meter, when paired with the ShinewayTech SLS series Stabilized Laser Source, is designed to meet the general testing requirements for fiber identification, attenuation/loss measurements, continuity verification, and transmission quality evaluation on both singlemode and multimode fibers in LAN/NAN/CATV infrastructure. The OPM-15/25 is suitable for use in both laboratory and field settings, offering high quality, stability, and cost-effectiveness.
Features:
Features:
- Compatible with singlemode/multimode fibers
- Utilizes a microprocessor and linear amplifier for long-term accuracy
- Provides quick response with no warm-up time required
- Features interchangeable connectors (FC/SC/ST)
- Dual-way power supply options: 9V alkaline battery/AC adapter
- Compact, lightweight, and resistant to dust and shock
- Includes power-saving auto-off setting
- Capable of detecting MOD tones
- Display units in dB/dBm/mW/μWIW
- Comes with PC software for data upload and reporting (OPM-25 only)
- CE and FCC certificates for compliance.
