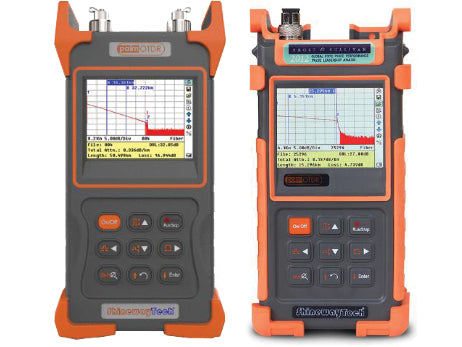

Handheld Access OTDR (palmOTDR-S120B)

Discover the ShinewayTech® compact palmOTDR, now offering enhanced testing capabilities, flexibility, and value with a combination of 850/1300/1310/1490/1550/1625/1650nm (Mono/double/triple wavelength) OTDR, 1310/1490/1550nm PON Power Meter, Stabilized Laser Source, and VFL. The OTDR wavelengths cater to various applications such as regular end-to-end fiber characterization (1310/1550nm), premise/enterprise LAN testing (850/1300nm), FTTx fiber link construction verification (1490nm), and PON live fiber troubleshooting (1625/1650nm with filter). The integrated PON Power Meter allows for in-service testing of all PON signals (1310/1490/1550nm) at any network spot, featuring pass-through design and burst mode support. The palmOTDR is the ultimate solution to meet the diverse testing requirements of an entire fiber network.

Features:

• Comprehensive fiber applications, ideal for LAN/WAN/FTTx certification & troubleshooting: SM: 1310/1490/1550, 1625/1650nm (with filter), up to 50dB MM: 850/1300nm, 21/24dB
• Fault locating, fiber length/loss measurement, connector/splice/splitter/macro bend/fiber-end detection
• Built-in PON Power Meter for Triple-play live measurement
• Optional Stabilized Laser Source, SM/MM Power Meter, and VFL
• FTTx in-service testing/Testing through splitter: (1625/1650nm with filter)
• Splitter & fiber-end identifiable
• Auto/Manual (2-point/5-point)/Averaging/Real-time test
• Pass/Fail assessment and ORL test function
• Quick start: <5 seconds
• Perfect user interface, handheld & lightweight (1kg)
• Hotkeys: Easiest operation in the world, push-and-test
• 1000 test records storage
• Bell core file format (.sor)
• PC software for batch data processing
• USB data interface, driver-free
• Multiple languages: EN/DE/IT/FR/ES/PT/RU/KR/VN/CN, etc.
• 8 hrs continuous operation/20 hrs standby
• Dust-shock proof (2m drop test)
• CE, FCC, FDA certificates
