Shineway Tech

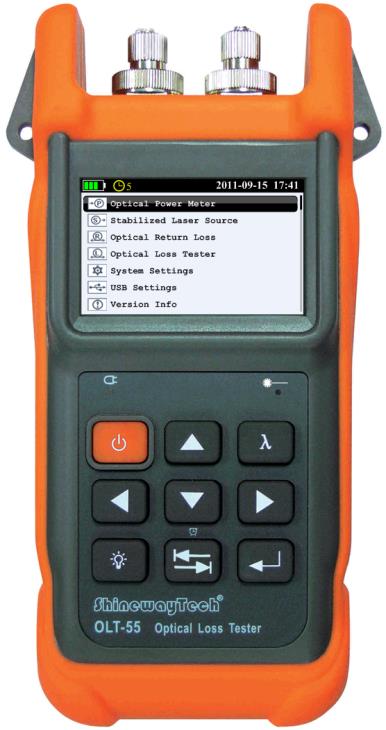

Intelligent Optical Loss Tester (OLT-55A-C)
Intelligent Optical Loss Tester (OLT-55A-C)
Regular price
$989.00 USD
Regular price
Sale price
$989.00 USD
Unit price
/
per
Couldn't load pickup availability
| GENERAL SPECIFICATION | |
|---|---|
| Laser Source | Power Meter |
| 1310 / 1550 nm, >=-4dBm | 850, 1300, 1310, 1490, 1550, 1625 nm, -70 ~ +10 dBm (-60 ~ +10 dBm @850 nm) |
The OLT 55 Intelligent Optical Loss Tester combines a Stabilized Laser Source, Optical Power Meter, Optical Loss Tester, ORL Tester, and Length Testing functions into a single device. It is capable of automatically conducting bidirectional loss tests on a single fiber with Pass/Fail assessment. With its versatile features, customizable configuration, and user-friendly design, the OLT 55 is the optimal optical loss tester for comprehensive evaluation of optical fiber link conditions in FTTx, LAN, and CATV networks.
Features:
- All-in-one functionality: SLS + OPM + OLT + ORL + Length test
- Optical power monitoring with Auto Power feature - Bidirectional loss testing on a single fiber
- ORL testing capability - Pass/Fail assessment functionality
- Automatic wavelength identification/switch with AutoID - Remote reference value setting
- Internal clock and editable fiber SN - Storage management for up to 1000 test records
- Data transfer to PC via USB (Driver-free)
- Auto-saving of test records in local unit/remote unit/both units
- USB power charging
- Over 35 hours of continuous operation
- Multilanguage support
- Quick start with no warm-up required
- High-resolution color LCD display - Pocket-sized, lightweight, and user-friendly design.
- Bidirectional Loss Testing, Auto Wavelength Recognition, Rechargeable battery, USB port, PC software, Power Monitoring, Optional Automatic bidirectional ORL test
