Shineway Tech

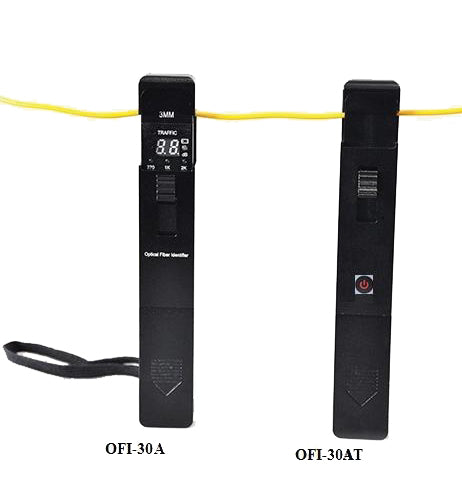

In-LineDigital Optical Fiber Identifier (OFI-30A/AT)
In-LineDigital Optical Fiber Identifier (OFI-30A/AT)
Regular price
$2,250.00 USD
Regular price
Sale price
$2,250.00 USD
Unit price
/
per
Couldn't load pickup availability
| GENERAL SPECIFICATION | |||
|---|---|---|---|
| Wavelength | Power Range | Singal | Fiber Type |
| 800 ~ 1700 nm | -30 ~ 10 dBm | CW / 270 Hz / 1 kHz / 2 kHz | 250 um / 900 um / 2 mm / 3 mm jacketed fiber |
The OFI-30A/AT Optical Fiber Identifier is a versatile tool designed for optical network deployment, maintenance, and troubleshooting. It utilizes non-destructive macro-bend detection technology to accurately detect optical signal presence, type, and direction on both single-mode (SM) and multi-mode (MM) fibers without causing any damage or interference to the tested fiber or service. When paired with the OFI-30A/AT Optical Signal Generator, this tool can inject low-frequency signals online and locate specific fibers without modulation signals in the optical fiber signal. The OFI-30A series is capable of identifying a wide range of signals, making it suitable for use in CATV systems, SONET/SDH, and DWDM systems tests.
Features:
Features:
- Low-frequency signal online injection
- Non-interference with online optical fibers
- Compatibility with various optical fiber diameters
- Automatic signal identification
- User-friendly operation with no training required
- Non-destructive detection
- Indication of signal presence, strength, and direction
- Detection of CW/MOD tones
- Buzzer indication for alerts
- Digital display of relative optical power
- Detection of low-frequency signals emitted by OFI-30AT
-
Portable and durable handheld design, suitable for use in machine room complex optical patch cords.
