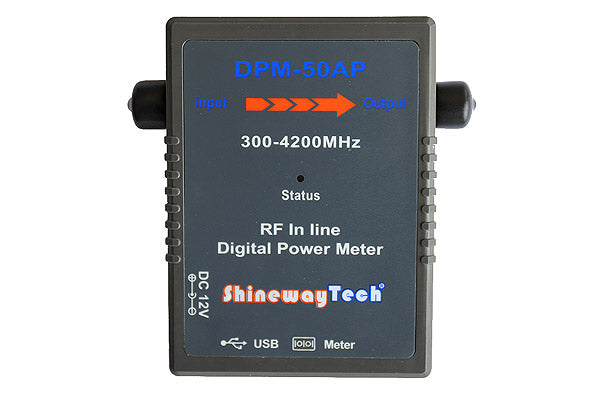

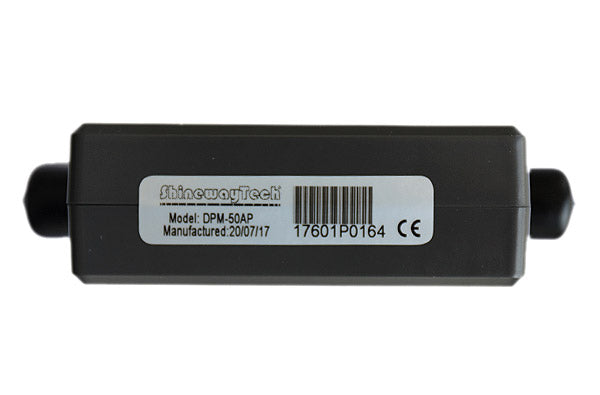

RF In-Line Digital Power Meter (DPM-50AP)
RF In-Line Digital Power Meter (DPM-50AP)
Regular price
$1,728.00 USD
Regular price
Sale price
$1,728.00 USD
Unit price
/
per
GENERAL SPECIFICATION | ||||
---|---|---|---|---|
Measures | Frequency Range | Average Power Range | Peak Power Range | Dynamic Range |
2G/3G wireless network, including GSM900 / 1800, CDMA800 / 1900, TD - SCDMA, WCDMA, CDMA2000, WLAN 2.4G & WiMAX or user-defined band | 300 - 4200 MHz | 100 mW - 200 W | 100 mW - 500 W | >=33 dB |
The DPM-50 AP In Line Digital Power Meter is specifically designed for field engineers and technicians working with wireless networks of various standards. It offers high dynamic range, accuracy, and stability, making it an ideal tool for power measurement. The DPM-50 can be used with PC monitoring software and an optional handheld monitor to perform real-time in-line monitoring of the entire antenna system. Test data can be saved for further analysis and evaluation.
Key Functions:
Key Functions:
- Measures 2G/3G wireless networks, including GSM900/1800, CDMA800/1900, TD-SCDMA, WCDMA, CDMA2000, WLAN 2.4G & WiMAX, or user-defined bands
- High-accuracy measurement of forward/reflected power, VSWR, Return Loss, and load power
- Peak power and Peak/Average Ratio measurement
- Burst power measurement
- Monitor function and test data saving
- PC monitoring software and handheld monitor for result display
- Standard N(Female) connector supports various transmission cables and antennas
- USB and DB9 interface
- Reverse connection protection
Features:
- Handheld and portable design
- Handheld monitor with backlight display
- USB for real-time monitoring and data transfer
- 320x240 TFT Color LCD (Optional)
- Straightforward test result display
- CE and FCC certificates
