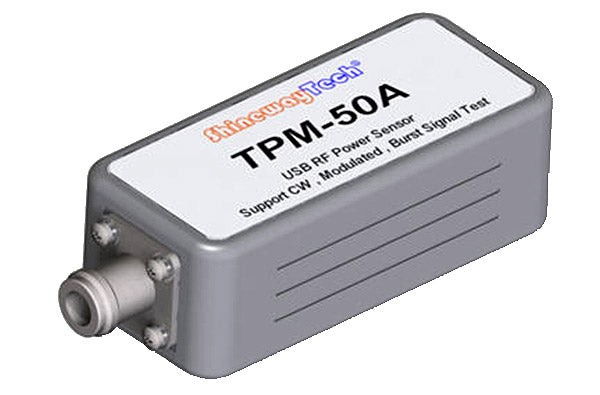

Terminal Power Meter (TPM-50A)

The TPM-50A Terminal RF Digital Power Meter is specifically designed for field engineers and technicians working with wireless networks of various standards. It offers high dynamic range, accuracy, and stability. The TPM-50A can be used with PC monitoring software and an optional handheld monitor to perform comprehensive monitoring of the entire antenna system and save test data for analysis and evaluation. Its primary application is monitoring the transmitter and antenna of wireless base stations during network installation and maintenance. The TPM-50A enables quick measurement of transmitter power and the system's VSWR, making it an ideal tool for base station and antenna system measurement and troubleshooting.

Key Functions:

• Measures 2G/3G/4G/WiMAX wireless networks, including GSM900/1800, CDMA800/1900, TD-SCDMA, WCDMA, CDMA2000, WLAN 2.4G & WiMAX, or user-defined bands
• High-accuracy measurement of forward power, VSWR, return loss, and load power
• Peak power and Peak/Average Ratio measurement
• Burst power measurement
• Continuous wave (CW) power measurement
• Monitor function and test data saving
• Compatibility with PC monitoring software and handheld monitor for result display
• Standard N(Female) connector supports various transmission cables and antennas
• USB interface for real-time monitoring and data transfer

Features:

• Handheld and portable design
• Accurate measurement of burst signals, with the ability to identify signal widths ranging from 1 microsecond to 60 milliseconds (approximately 50% of the signal width), providing detailed measurements
• USB connectivity for real-time monitoring and data transfer
• Straightforward test result display
• CE and FCC certificates for compliance with regulatory standards.
