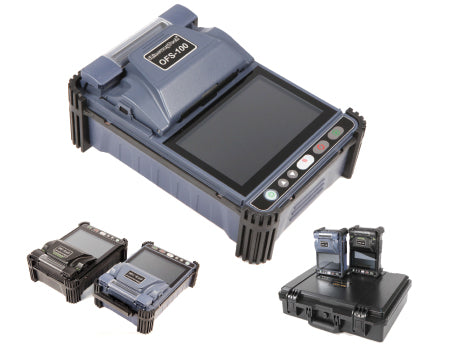

Handheld Fusion Splicer (OFS-100)

Handheld Fusion Splicer (OFS-100)

Regular price $2,700.00 USD
Regular price Sale price $2,700.00 USD
Sale Sold out
GENERAL SPECIFICATION
Dims (mm) Weight AVG Splice Loss Splice Time Tube Heat Time
131W × 79D × 200H 1.3kg (w/ batt) SM: 0.02dB; MM: 0.01dB; others: 0.04dB Typical 7 sec. with standard SM fiber Typical 18 sec.
The OFS-100 integrates cutting-edge high-speed image processing technology and precise 4-motor positioning technology to deliver rapid automatic fiber splicing with exceptional quality. Its 5-inch LCD screen and dual CMOS cameras with X/Y and X+Y display provide a comprehensive view of the fiber splicing process at every stage. This device supports a wide range of splicing options, including SMF, MMF, DSF, NZ-DSF, BIF, CSF, and EDF, making it a versatile tool for various industries such as Telecommunications, Broadcasting, Railway, Power, Military, and scientific research. The compact design allows for extended outdoor use, enhancing its utility in optical fiber installations and maintenance tasks.

Key Features:
  • Applicable Fibers: SMF (ITU-T G.652), MMF (ITU-T G.651), DSF (ITU-T G.653), NZDSF (ITU-T G.655), BIF (ITU-T G.657), EDF
  • Compact and lightweight design at 1.3kg with battery.
  • 4-motor clad alignment ensures precise and high-quality splicing.
  • Supports SMF, MMF, DSF, NZ-DSF, BIF, CSF, and EDF splicing.
  • One-fit-all fiber holders for bare fiber, pigtails, patch cords, and FTTH indoor fiber splicing.
  • Features auto fiber end-face inspection, arc position adjustment, splice loss calculation, temperature, and pressure compensation.
  • Automatic splicing with splicing time ≤6s and heating time ≤18s (adjustable).
  • Arc counter prompts electrode change based on usage.
  • Auto arc optimization and heating functions.
  • X/Y and X+Y display for clear fiber core image visualization.
  • Quick mount battery with power indicator for convenience.
  • Built-in illumination for enhanced visibility.
  • Wind, dust, rain, and shockproof construction for durability.
  • User-friendly graphical interface for easy operation and understanding the convenience and efficiency of this advanced testing instrument today!

Product Sheet
