Shineway Tech

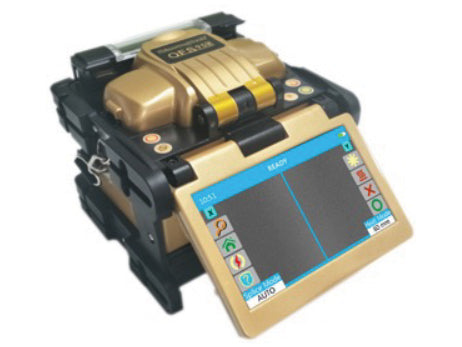

Core Alignment Optical Fusion Splicer (OFS-95S)

Core Alignment Optical Fusion Splicer (OFS-95S)

Regular price $4,500.00 USD
Regular price Sale price $4,500.00 USD
Sale Sold out
GENERAL SPECIFICATION
Dimension (mm) Weight Actual AVG Splice Loss Splice Time Tube Heat Time
120W × 105D × 105H 1.8kg (with battery) SM: 0.02dB; MM: 0.01dB; others: 0.04dB Typical 7 sec. with standard SM fiber Typical 18 sec.

Introducing the OFS-95S Fiber Optic Fusion Splicer, a versatile and precise tool engineered for seamless fiber splicing with unparalleled accuracy. Boasting 6-motor micron-level control, it achieves splice loss below 0.02dB for G.652 fiber, ensuring exceptional quality connections.

Equipped with interchangeable universal fiber holders catering to various fiber types and applications, including SOC holders and an internal thermometer/barometer, the OFS-95S adapts effortlessly to diverse environments. Its rapid 7-second startup, 9-second splicing, and automatic heating capabilities make it ideal for high-volume splicing tasks during fiber installation and maintenance.

Key Features:

  • Applicable Fibers: SMF(ITU-T G.652), MMF(ITU-T G.651), DSF(ITU-T G.653), NZDSF(ITU-T G.655),BIF(ITU-T G.657), EDF
  • Compact and lightweight at 1.9kg (including battery)
  • 6-motor core alignment ensures precise and high-quality splicing
  • Compatible with a wide range of fiber types: SMF, MMF, DSF, NZ-DSF, BIF, and EDF
  • Universal fiber holders accommodate bare fiber, pigtails, patch cords, and FTTH indoor fiber
  • Automated fiber end-face inspection, arc position adjustment, splice loss calculation, and temperature/pressure compensation
  • Offers both automatic and manual splicing modes
  • Splicing time of ≤9 seconds, heating time of ≤25 seconds (adjustable time and power settings)
  • Arc counter prompts electrode replacement as needed
  • Automatic arc optimization and heating
  • Dual V-groove design ensures precise fiber alignment
  • X/Y and X+Y display for clear fiber core imaging
  • Quick-mount battery with power indicator, housed in a dust and water-resistant dock
  • Provides DC output for powering external devices
  • Built-in illumination for enhanced visibility
  • Resistant to wind, dust, rain, and shock
  • Auto display flip feature
  • User-friendly graphical interface with multi-language support
  • Includes password control for added security.

Product Sheet
