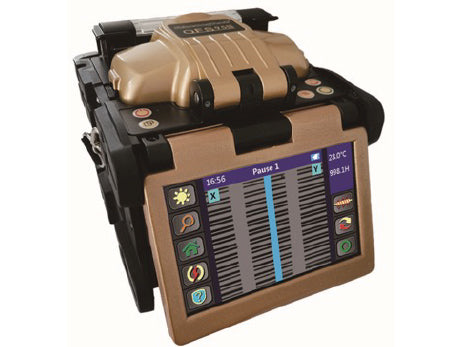

Ribbon Optical Fusion Splicer (OFS-95R)
Ribbon Optical Fusion Splicer (OFS-95R)
Regular price
$8,500.00 USD
Regular price
Sale price
$8,500.00 USD
Unit price
/
per
GENERAL SPECIFICATION | ||||
---|---|---|---|---|
Dimension (mm) | Weight | Actual AVG Splice Loss | Splice Time | Tube Heat Time |
125W × 125D × 135H | 1.7kg (with battery) | SM: 0.05dB; MM: 0.02dB; others: 0.04dB | Typical 15 sec. with standard SM fiber | Typical 25 sec. |
The OFS-95R Ribbon Fiber Fusion Splicer, a cutting-edge device leveraging advanced image processing and precise V-groove positioning technologies for rapid and high-quality optical fiber fusion. Ideal for construction, maintenance, and repair of ribbon cables, it supports a variety of fiber types including single mode, multimode, and specialty fibers like bend-insensitive and dispersion-shifted. With its compact design weighing just 1.8kg including the battery, it's lightweight and portable, perfect for field work.
Features:
- Applicable Fibers: SMF(ITU-T G.652), MMF(ITU-T G.651), DSF(ITU-T G.653), NZDSF(ITU-T G.655),BIF(ITU-T G.657), EDF
- Supports SMF (G.652), MMF (G.651), DSF (G.653), NZ-DSF (G.655), BIF (G.657), and EDF splicing
- Automatic fiber end-face inspection, arc position adjustment, and splice loss calculation
- Auto and manual splicing modes for flexibility
- Ultra-fast splicing in ≤15 seconds, with heating in ≤25 seconds (adjustable time and power)
- Arc counter alerts for electrode replacement
- Auto arc optimization and heating for efficiency
- Dual CMOS monitors with X/Y and X+Y display options for clear fiber core visualization
- Quick-mount battery with power indicator, housed in a dust and water-resistant dock
- DC output to power external devices
- Built-in illumination for working in various conditions
- Resistant to wind, dust, rain, and shock for durability
- Auto display flip and graphical user interface for intuitive operation
- Multi-language support for global usability
