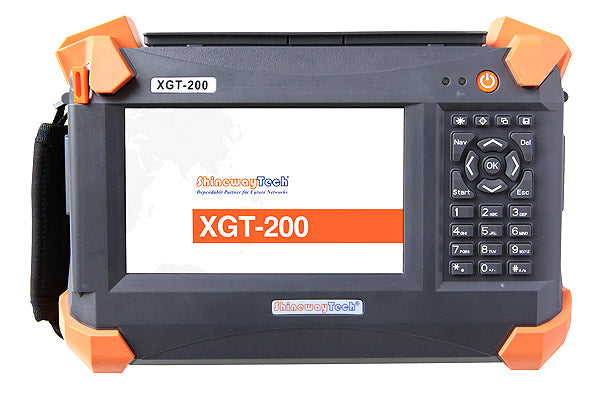

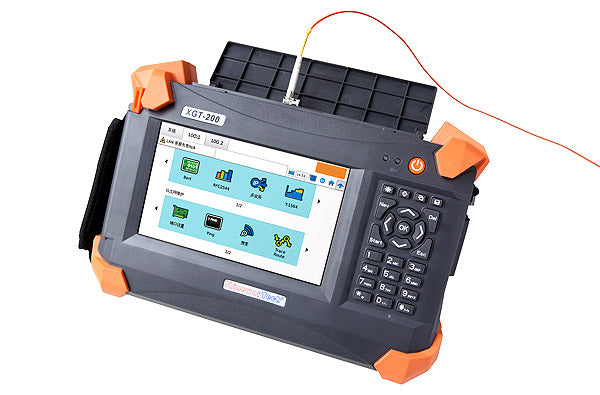

10G Ethernet Tester - Dual SFP+ (XGT-200A)

The XGT-200 Ethernet Tester by ShinewayTech® is a comprehensive and user-friendly solution for testing next-generation Ethernet networks. With its various test modules, this tester allows users to verify the performance of their Ethernet connections. The XGT-200 features two 10/100/1000Mb/s electrical interfaces, two 100/1000M SFP optical interfaces, and two 10Gbps SFP+ interfaces. It can generate and analyze test traffic streams, providing accurate results.

In addition to its testing capabilities, the XGT-200 also offers installation and maintenance services, as well as the activation of new professional services. It provides a range of test functions that help users control and assess the quality of their Ethernet connections. Field technicians will find the XGT-200 to be a comprehensive and user-friendly tool for Ethernet and IP connectivity testing.

Features:

• Smart and durable design, suitable for field applications
• 7-inch HD color touch screen, readable even in sunlight
• User-friendly interface for easy operation
• PC remote control capability
• Test profiles and data management, with USB/FTP transfer support
• Comprehensive testing for Ethernet networks
• Lithium battery provides up to 4 hours of continuous testing

Functions:

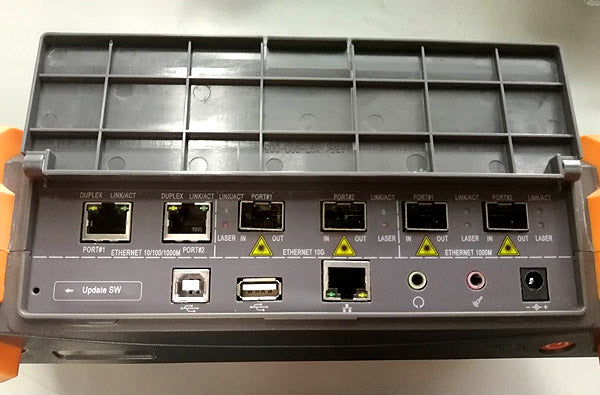

• 10GE SFP+ x2, 10/100/1000BASE-T RJ45 x2, 100/1000BASE-X SFP x2 interfaces
• Supports bandwidths from 10M to 10Gb/s in LAN and WAN modes
• BERT test for Layer 1/2/3/4
• Multi-stream traffic generation and analysis
• RFC2544 and Y.1564 tests
• OAM test (Optional)
• VLAN and VLAN Q-in-Q tests
• MPLS test with multiple MPLS tags
• Service disruption time test
• CoS and ToS/DSCP priority test
• Packet capture
• Intelligent detection and remote-controlled loopback test
• Statistical analysis reporting
