Shineway Tech

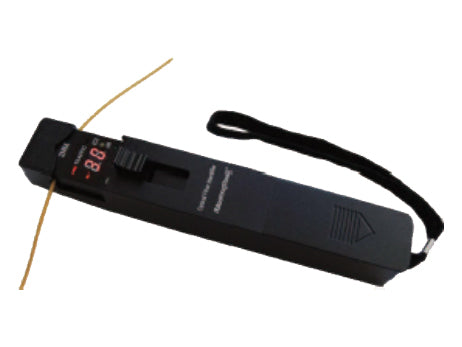

Digital Optical Fiber Identifier (OFI-20A)
Digital Optical Fiber Identifier (OFI-20A)
Regular price
$531.00 USD
Regular price
Sale price
$531.00 USD
Unit price
/
per
Couldn't load pickup availability
| GENERAL SPECIFICATION | |||
|---|---|---|---|
| Wavelength | Detect Sensitivity | LED Display | Fiber Type |
| 800 ~ 1700 nm | -55 dBm, Singal: CW / 270 Hz / 1 kHz / 2 kHz | Power / Signal / Direction / Frequency | 250 um / 900 um / 2 mm / 3 mm jacketed fiber |
The OFI-20A Optical Fiber Identifier is a versatile tool designed for detecting optical signals, their type, and direction on fibers during network deployment, maintenance, and troubleshooting. Its non-destructive macro-bend detection technology ensures no harm to the tested fiber or service interference.
Features:
Features:
- Detects optical signal presence, type, and direction
- Non-destructive detection technology
- Identifies wide-spectrum signals, including those in CATV systems
- Suitable for SONET/SDH & DWDM systems tests
- Compatible with fiber types: 250µm, 900µm, 2mm/3mm jacketed fiber
- Indication of signal presence, strength, and direction
- CW/MOD tones detection
- Buzzer indication
- Handheld and sturdy design
- CE and FCC certificates for quality assurance
