1,000 FT Fiber OTDR Launch Box

Name: 1,000 FT Fiber OTDR Launch Box
Brand: Shineway Tech
Price: 309.0 USD
Availability: InStock

$309.00 USD

Sale Sold out

1,000 FT Small Box SC/UPC to SC/UPC (Fiber Type: SM G652D) SC/UPC to SC/UPC(Fiber Type: SM G652D) SC/UPC to LC/UPC (Fiber Type: SM G652D) SC/UPC to SC/APC (Fiber Type: MM OM1) SC/UPC to SC/UPC (Fiber Type: MM OM1) SC/UPC to LC/UPC (Fiber Type: MM OM1)

Product variants

Quantity

GENERAL SPECIFICATION
Dimension (cm)	Weight	Material	Operating Temp	Typical Loss (dB)
13.5W × 9D × 4.3H (sm) 23.8W x 14.1D x6.7H (bg)	.35 kg (sm) .75 kg (bg)	SR Polypropylene	-40 ~ 55 C	<1 @ 1310 nm for 1km

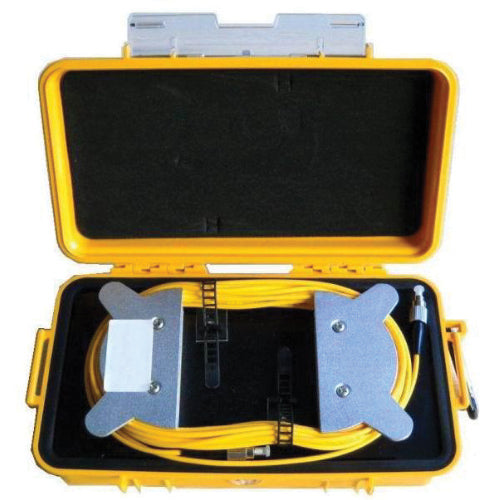

The OTDR Launch Box is meticulously crafted to streamline OTDR testing of fiber optic cables and mitigate the influence of the OTDR's launch pulse on measurement precision.

Key features:

Capacity to accommodate 2km of fiber
Water and dust resistance for reliable operation in challenging environments
Compound latch for secure sealing and effortless opening with a locking mechanism
Auto Purge Valve to adjust for variations in altitude and temperature.

Product Sheet
